Multimeter Digital Multi-functional Multimeters

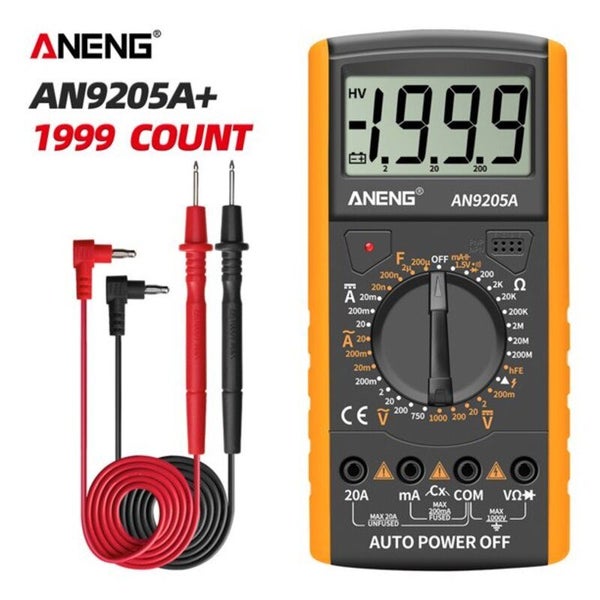

ANENG AN9205A Digital Multimeter
Humanity Design: Compact Look & Silicone Shell Protection & Back Support & Automatic Shutdown & Fast Measurement & High & -burn Design.Large Screen Backlight DisplayBack Bracket: Effectively support the multimeter to facilitate standing operation.Double Fuses: -burn design, and reliable.NCV Non-Detection: With the built-in smart sensor, if there is an AC electromagnetic field, the buzzer will react and the indicator light will flash.Fire Wire Identification: Insert the test into the socket, the screen displays HV, which means that it is the live wire.Automatic Shutdown: Without operation for 15 minutes.Wide Application: DC voltage measurement, AC voltage measurement, DC current measurement, AC current measurement, capacitance measurement, resistance measurement, continuity detection, triode measurement, /fire wire testing and diode measurement.Specifications:
Power Supply: 9V Battery (excluded)
Technical Parameters:
DC Voltage: 200mV-2V-20V-200V-1000V (±3%)
AC Voltage: 200mV-2V-20V-200V-750V (±3%)
DC Current: 20mA-200mA-20A (±3%)
AC Current: 2m-20m-200m-20A (±3%)
Resistance Measurement O: 200-2k-20k-200k-2M-20MO-200MO (±3%)
Capacitance Measurement F: 20nF-200nF-2uF-200uF (±3%)
Continuity Check (buzzer): (forward pressure drop)
Diode Measurement
Triode Measurement
Fire Wire Identification
Overload Protection
Low Voltage Display
Automatic Shutdown Function: (without operation for 15 minutes)
Item Size: Approx. 182.5x90x35.4mm
Item Weight: Approx. 178g
9v battery (Not including)
Packing List:
1 x Digital Multimeter
2 x Test Line
1 x Users Manual(English and Chinese)
